Evaluation Kit

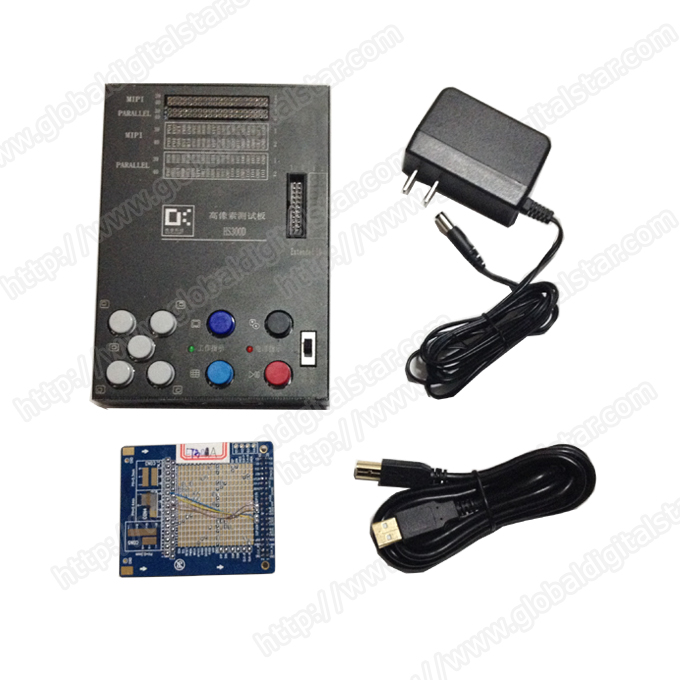

High speed USB 2.0 image testing tool with 4 lanes MIPI output; data transfer can reach 480Mbps which is suitable device for focus adjusting and testing for high resolution camera modules (both MIPI & DVP) .
Features：
|
Model |
HS300D |
|
|
ITEM |
Features |
Remark |
|
PC Data Interface |
USB2.0 + Buffer（reach 480Mbps image data transfer speed） |
|
|
Sensor/IC Data Interface |
MIPI interface, flexible interface ( can add transferrable board or custom receiving HISPI,TV video signal), support serial such as MTK SPI，Zhan Xun, SPI and etc. |
MAX MIPI:4 lane |
|
Sensor Voltage |
4 lane 0-3.3V adjustable voltage, each step 10mV； 1 lane 0-9V adjustable voltage，each step 10mV |
|
|
Sensor Clock |
Software adjustable 6-99 MHz，each step 0.1 MHz |
|
|
Sensor IO Voltage |
1.2-3.3 V adjustable voltage，each step 0.01V |
|
|
Sensor Interface Standard |
MIPI & DVP）40PIN connector female，PITCH：2.54 mm |
|
|
I2C Clock |
100K/400K optional |
|
|
Cache |
256 Mbit, SDRAM (16Mx16Bit) |
|
|
Expand GPIO port |
8 PCS，can be used as switch controller, 3.3V /200mA LED display, clock, I2C interface |
|
|
Power Supply |
Outside power DC 12V/ 1 A |
|
|
Dimensions |
164x114x32.5 (WDH , mm) |
|
